Ejector Punch Blanks Style PEC from Precision Punch & Tooling
|
M-2: Rc 60/63- D-2, PM-M4, PM-10V: Rc 61/63 |
| Style PEB | D=Dia. | H | T | L=Length 1/4" Increments | Component (PEC) | M-2 | D-2 | PM-M4 | PM-10V | |||
| 12* | 1/8 | 1/4 | 1/8 | 1 1/4 - 2 1/2 | 10 | 29.59 | ON REQUEST | |||||
| 18 | 1/5 | 1/3 | 1/8 | 1 1/4 - 3 | 20 | 22.74 | 23.71 | 26.63 | 33.78 | |||
| 25 | 1/4 | 3/8 | 3/16 | 1 1/4 - 3 | 29 | 24.47 | 25.55 | 28.68 | 35.47 | |||
| 31 | 5/16 | 7/16 | 3/16 | 1 1/4 - 4 | 42 | 24.91 | 26.14 | 29.88 | 37.66 | |||
| 37 | 3/8 | 1/2 | 3/16 | 1 1/4 - 4 | 60 | 25.16 | 26.31 | 30.99 | 39.43 | |||
| 43 | 7/16 | 9/16 | 3/16 | 1 1/2 - 4 | 60 | 26.81 | 28.01 | 33.72 | 42.91 | |||
| 50 | 1/2 | 5/8 | 3/16 | 1 1/2 - 4 | 60 | 28.39 | 29.61 | 35.76 | 46.64 | |||
| 62 | 5/8 | 3/4 | 3/16 | 1 1/2 - 4 | 90 | 31.61 | 32.93 | 41.25 | 53.45 | |||
| 75 | 3/4 | 7/8 | 3/16 | 1 1/2 - 4 | 90 | 39.22 | 40.77 | 52.24 | 66.46 | |||
| 100 | 1" | 1 1/8" | 3/16 | 1 1/2 - 4 | 90 | 56.35 | 58.41 | 77.07 | 99.66 | |||
* PEB-12 stocked in M-2 only
| Component | Set Screw | Spring | Pin | Price per Set | |||||
| D | L | D | L | D | L | H | T | ||

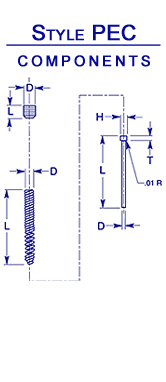

| PEC – 05 | 3-48 | 0.19 | 0.08 | 2.40 | 0.017 | 1.10 | 0.048 | 0.031 | 3.50 |
| PEC – 10 | 2-56 | 0.12 | 0.065 | 2.40 | 0.022 | 2.0 | 0.062 | 0.031 | 3.20 |
| PEC – 20 | 3-48 | 0.19 | 0.08 | 2.40 | 0.027 | 2.0 | 0.062 | 0.047 | 3.20 |
| PEC – 29 | 5-40 | 0.19 | 0.104 | 2.40 | 0.027 | 2.0 | 0.073 | 0.047 | 3.20 |
| PEC – 42 | 8-32 | 0.19 | 0.135 | 3.20 | 0.041 | 2.0 | 0.094 | 0.062 | 3.20 |
| PEC – 60 | 10-32 | 0.19 | 0.167 | 3.00 | 0.058 | 2.0 | 0.120 | 0.062 | 3.20 |
| PEC – 90 | 1/4-28 | 0.25 | 0.216 | 3.05 | 0.089 | 2.25 | 0.156 | 0.094 | 3.20 |
| PEC – 120 | 5/16-24 | 0.25 | 0.27 | 2.56 | 0.120 | 2.2 | 0.188 | 0.094 | 4.40 |
,
| Quantity Discounts | |||
| 1-24 | 25 – 49 | 50 – 99 | 100 + |
| NET | 5% | 10% | Call |
,
| How To order: EXAMPLE | |||
| Style | Length | Mat. | Quantity |
| PEB 31 | 3.25″ | PM-M4 | 50 |
,
|
