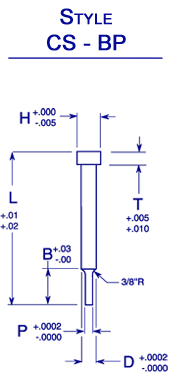

| Style CS-BP | D Dia. | L Length | Minimum P Point Diameter any .0001 inc. | B Std. Point Length | 2 1/2″ | 3 1/2″** | ||
| Price | Price | |||||||
| A-2 | PM- | A-2 | PM- | |||||
| M-2 | 10V | M-2 | 10V* | |||||
| CS-BP-06 | 0.0625 | Standard 2 1/2 – 3 1/2 Cut to length (See cut-off charge below) | 0.031 | 3/16 | 10.39 | 13.52 | 11.64 | 15.46 |
| CS-BP-09 | 0.0938 | 0.062 | 1/4 | 10.96 | 14.33 | 12.25 | 16.30 | |
| CS-BP-12 | 0.125 | 0.093 | 5/16 | 11.02 | 14.36 | 12.33 | 16.33 | |
| CS-BP-15 | 0.1562 | 0.125 | 3/8 | 11.47 | 14.94 | 12.75 | 16.92 | |
| CS-BP-18 | 0.1875 | 0.156 | 7/16 | 12.30 | 16.06 | 13.72 | 18.39 | |
| CS-BP-21 | 0.2188 | 0.182 | 1/2 | 12.38 | 16.45 | 13.82 | 18.64 | |
| CS-BP-25 | 0.25 | 0.218 | 9/16 | 13.62 | 18.37 | 14.93 | 20.40 | |
| CS-BP-31 | 0.3125 | 0.281 | 5/8 | 14.49 | 19.86 | 15.97 | 22.09 | |
| CS-BP-37 | 0.375 | 0.343 | 5/8 | 15.25 | 21.24 | 16.69 | 23.42 | |
,
| Available on Request |
 |
,
| Quantity Discounts | ||||
| 1 – 5 | 6 – 24 | 25 – 49 | 50 – 99 | 100 + |
| Net + $10. Set-up | NET | 5% | 10% | Call |
,
| How To order: EXAMPLE | ||||
| Style | Length | Mat. | Pt. Dia. | Quantity |
| CS-BP-06 | 2″ | A-2 | 0.031 | 15 |
,
(**) See page 4 for BLANK sizes available • (*) CS-BP only
